Wirecast Pro runs on any Mac with macOS 11 or later, on Intel processors and Apple Silicon alike. It needs a 64-bit system. The interface appears in English, German, Spanish, Italian, Chinese (Simplified), Korean, Dutch, Portuguese, French, Czech, Swedish or Japanese — a sensible spread for international crews.
In practice, the software turns a Mac into a small television control room. It captures feeds from cameras, screen shares, microphones and NDI sources, then lets you switch between them live while streaming to a platform or recording to disk. A sports broadcast, a conference keynote, a concert with multiple camera angles: these are the scenarios where it fits. You can also place a logo on the outgoing video signal, which matters for branded streams and institutional events.
The tool records interviews, music videos and full programme-length shows. Everything stays local if you prefer; the recording engine works independently of the stream output. Version 16.5.4, released in September 2026, tightened detection of certain PTZ NDI cameras and added a discontinuous-frame flag for NDI sources — a small but useful signal for downstream equipment.
NDI camera missing: verify matching subnets for discovery
NDI camera detection has been a recurring friction point. If a PTZ camera refuses to appear in the sources list, the first step is to check that the camera and the Mac sit on the same subnet. NDI discovery relies on mDNS, and a mismatched VLAN or an overzealous firewall can silence it entirely. Restarting the NDI source after Wirecast is already running often helps; the 16.5.4 release improved detection specifically for this scenario, but the order of operations still matters.
Audio drift between sources is another classic headache. When a USB microphone and an HDMI capture device arrive with slightly different clock rates, the sync drifts over a long stream. The practical fix is to add a short audio delay on the faster source — Wirecast exposes this in the source properties, and a value between 40 and 120 milliseconds usually closes the gap. Testing with a clap or a visible transient saves guesswork.
GPU-related frame drops on Apple Silicon machines occasionally surface when using multiple 4K sources and complex overlays simultaneously. The workaround is not to lower ambitions but to flatten the shot hierarchy: compositing graphics in a single layer rather than stacking several reduces the render load noticeably. Switching the preview quality to a lower resolution also helps, because the preview render and the program output share the same GPU budget.
The virtual camera can trip over corporate IT policies that block the virtual microphone driver. When this happens, the virtual camera appears to start but produces no audio. The 16.5.4 update addressed the symptom on the Wirecast side, but the root cause is often a system-level restriction. Checking System Settings > Privacy & Security > Microphone and ensuring Wirecast appears there usually resolves it; in managed environments, an administrator may need to whitelist the component.
Solo operators: juggling remote guests, cameras, and clips alone
The solo operator running a weekly live show or a podcast with video guests extracts a great deal from Wirecast. One person can manage multiple remote callers via NDI or browser sources, switch cameras, roll in pre-recorded segments and control lower-thirds — all from a single screen. The built-in title templates save the trouble of designing graphics from scratch, and the ability to edit text live means corrections happen without stopping the stream.
Small production houses and institutional AV teams are the second natural fit. A university streaming a graduation, a house of worship broadcasting a service, a conference organiser sending a keynote to YouTube: these setups benefit from the combination of hardware capture, NDI integration and local recording. The logo overlay feature matters here, because branded output is often a requirement, not a preference.
Musicians and performance artists occupy a third niche. The software records multi-camera sessions while streaming, which means a live concert can be archived in full resolution for later editing. The ISO recording capability — capturing each source independently — is particularly valuable for post-production, even if the live mix favours one angle.
Launch in eight seconds: responsiveness under a 1080p60 load
Launch time sits around eight to twelve seconds on a recent MacBook Pro, slower on machines with spinning disks. Once running, the application feels responsive: switching between shots is near-instantaneous, and the preview window keeps up with 1080p60 sources without visible stutter on Apple Silicon. Memory usage climbs with the number of sources; a session with four NDI cameras, two screen captures and a handful of graphic overlays typically occupies between 2 and 4 GB of RAM.
CPU load depends heavily on the encoding settings. Using the hardware encoder on Apple Silicon keeps the processor largely idle — often under 15 percent for a single-program stream at 1080p. Software encoding at high bitrates pushes that figure higher, and streaming to multiple platforms simultaneously multiplies the effort. The GPU handles scaling and compositing, and on integrated graphics the ceiling becomes apparent when stacking several 4K sources with animated overlays.
Stability over long sessions is generally solid, though the occasional memory leak has been reported after six or more hours of continuous streaming with frequent source changes. Restarting the application before an important event is prudent practice, not superstition. Crashes are rare but tend to cluster around NDI source addition or removal while streaming — a workflow worth avoiding during critical moments.
Empty document to live: adding a Blackmagic camera and remote guest

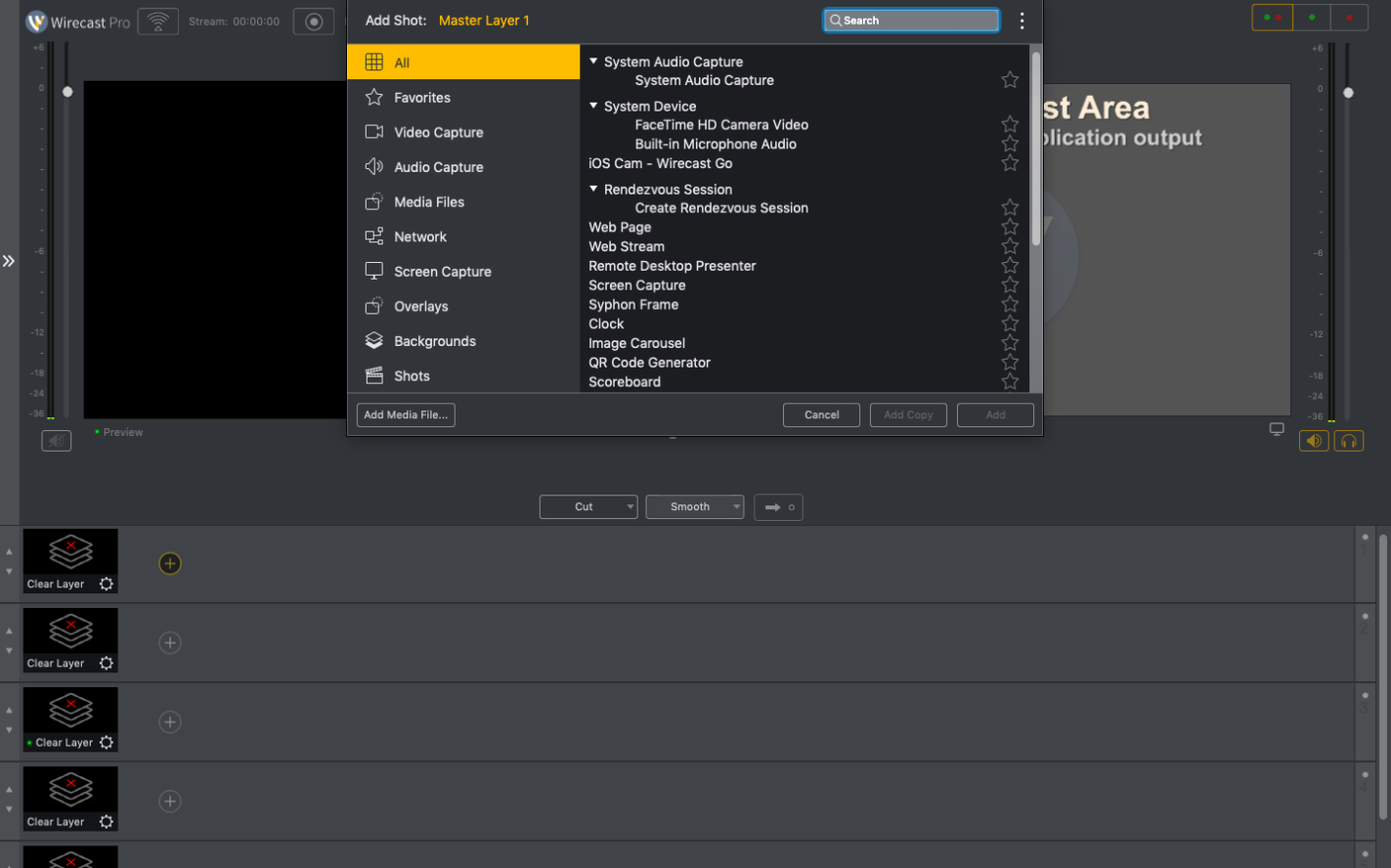

Imagine a two-person team preparing a live interview with a remote guest and a local camera. The session opens with an empty document and a single preview window. The first step is to add the local camera: a Blackmagic capture device appears in the sources dropdown, and dragging it onto a shot creates the main angle. A second shot receives the remote guest via NDI from a separate machine running a video call — the source appears automatically if both devices share the network.
Graphics come next. A lower-third title is selected from the built-in library, and the placeholder text is replaced with the guest's name and title. The operator assigns it to its own shot, stacked above the camera, so it can be toggled on and off without cutting away. A semi-transparent logo is placed in the corner as a persistent overlay, not tied to any single shot.
Audio routing demands attention before going live. The local microphone and the remote guest's audio arrive on separate channels, and a quick sound check reveals the remote feed is louder. A gain adjustment on the NDI source balances the levels. The headphone output is set to monitor the program mix with a slight delay compensation enabled.

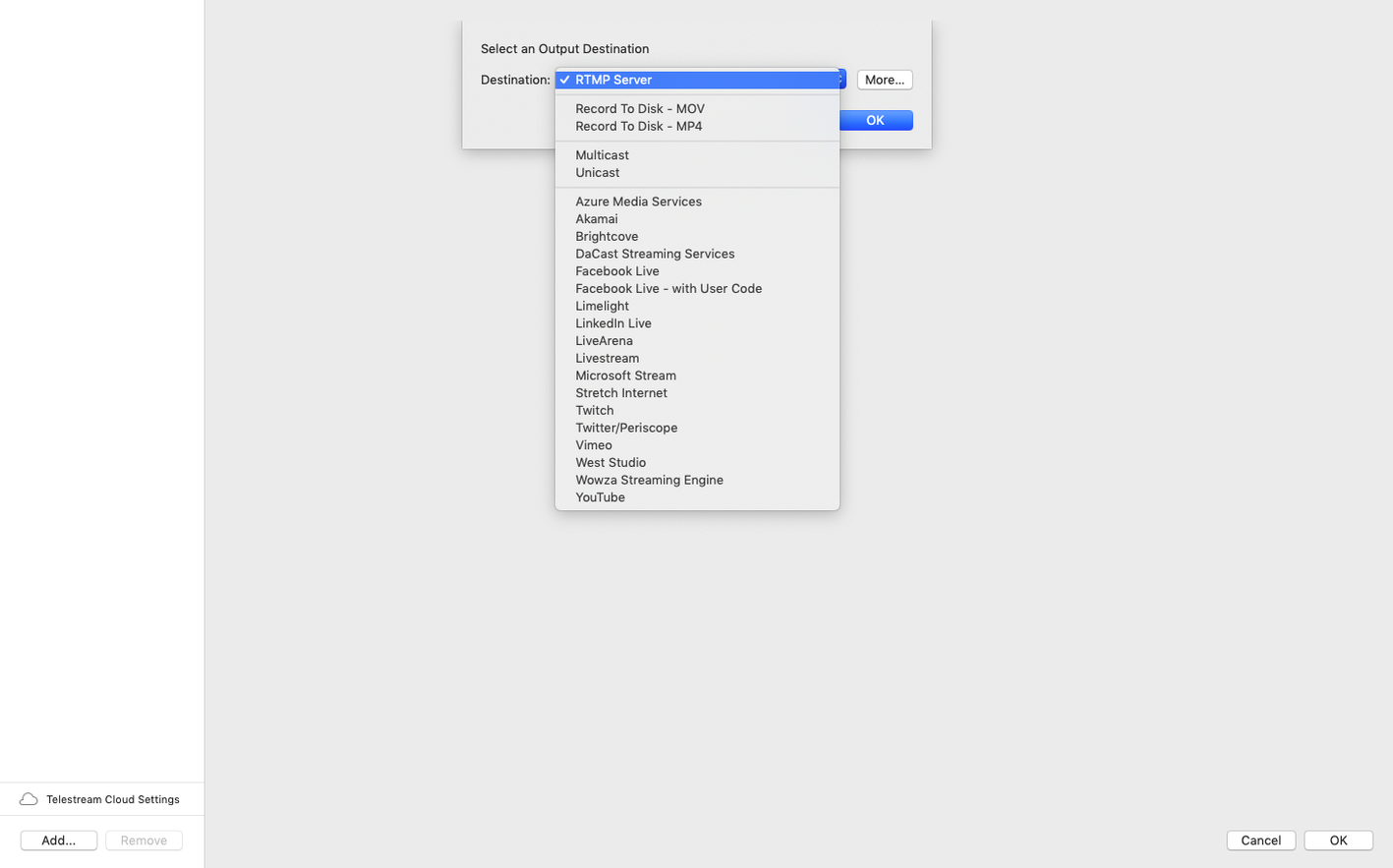

With ten minutes to air, the streaming destination is configured: a YouTube scheduled event, with the stream key pasted in and the encoder set to hardware H.264 at 1080p30. A local recording is armed simultaneously, writing to an external SSD. The operator clicks the stream button, waits for the confirmation that YouTube is receiving, and then begins the countdown. The first shot fades up from black, the host speaks, and the lower-third slides in on cue. The session flows shot by shot until the sign-off, when the recording stops and the stream ends with a clean fade to black.
In short: Wirecast rewards methodical preparation and punishes improvisation. The tool is at its best when every source, every graphic and every level is checked before the broadcast begins. Once the stream is underway, the interface stays out of the way — which is exactly what a live production tool should do.
