Compatibility: Artlantis 9.5.2 asks for macOS 10.13 or later and an Intel processor. It remains a native Intel application, which means it runs under Rosetta 2 on Apple Silicon Macs without complaint, though it makes no claim on Metal optimisation.
What kind of output does it produce?
Stills, animation sequences and fully navigable VR panoramas. The panorama export includes QuickTime VR files, which still have a niche following among architects who prefer a self-contained file over a web viewer. You can also generate standard virtual reality scenes for headset viewing.
Light and materials: drag-and-drop shaders with per-scene light control

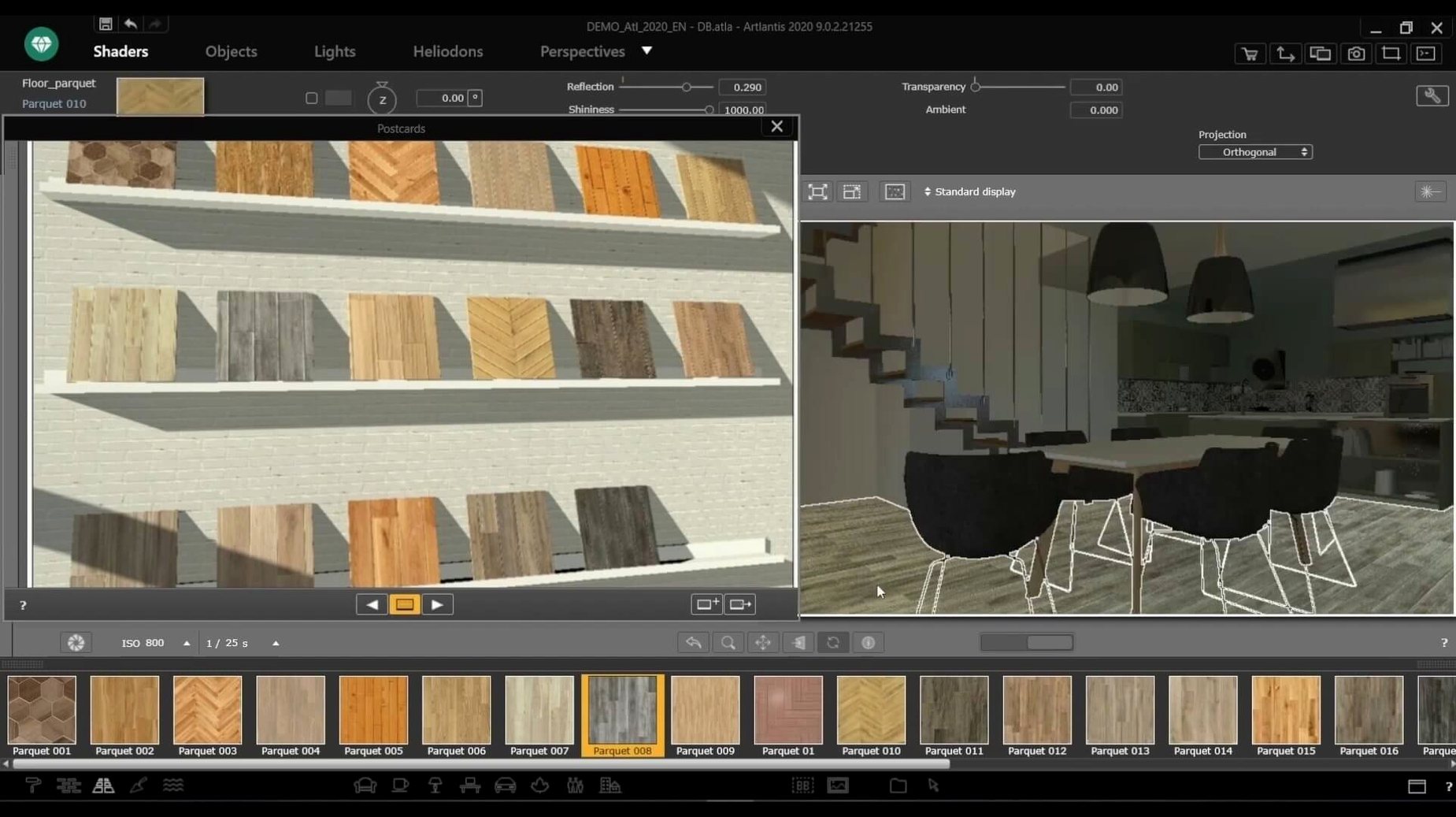

Natural and artificial light sources are set per scene, with control over position and intensity. Materials come from a drag-and-drop catalog: select a surface, pull a shader across, and the texture maps update. For finer adjustments there are shader tools for building custom textures, plus post‑processing controls for brightness, contrast and colour tables applied after the render.
What can be imported and edited?
DXF, DWG and 3DS files open directly. Once inside, you can modify objects, surfaces and scene details without returning to the source CAD application. The interface switches between eleven languages, including Russian, Chinese, Korean and Japanese.
CAD chain: direct-exchange plugins keep layers intact from ArchiCAD or SketchUp
Artlantis sits at the centre of a chain rather than at either end. A typical setup feeds it geometry from ArchiCAD, VectorWorks, SketchUp, AutoCAD or Arc+ via the direct exchange plugins; these skip the intermediate file format and preserve layer names, camera positions and sun settings. If the plugin route is not available, DXF, DWG and 3DS imports cover most of what remains. On the output side, rendered stills often travel to Photoshop or Affinity Photo for final grading, while animation frames may land in DaVinci Resolve or After Effects. The QuickTime VR panoramas work standalone — double‑click one in the Finder and it opens in QuickTime Player, still present on Monterey and Ventura, giving a full 360° view without a browser.
macOS integration is largely file‑based and unobtrusive. Artlantis registers its document types with Launch Services, so a .atl project opens with a double‑click. The rendering engine writes to a user‑defined scratch folder, which you can place on an external SSD; large projects benefit noticeably from keeping that folder off the system drive. The application respects Spaces and full‑screen mode well enough for a multi‑monitor arrangement, though it predates native Stage Manager awareness. Spotlight indexes project files by name but not by internal material or object metadata, so a consistent naming convention pays early dividends.
A worked example: from SketchUp model to client presentation still
Suppose a SketchUp model of a courtyard house is ready, with materials roughly blocked in but no lighting beyond the default sun. The goal is a single high‑resolution still showing late‑afternoon warmth on a textured rammed‑earth wall.
Export begins in SketchUp using the Artlantis plugin, which writes a reference file that opens directly in Artlantis with all cameras and layers intact. Once the scene appears in the viewport, the first step is light: the physical sky is set to a late‑October afternoon at latitude 35°N, which drops the sun low and warms the colour temperature. An artificial point light is added inside the covered walkway, its intensity pulled back to 15% to suggest a lit passage without blowing out the shadow detail.
Materials come next. The rammed‑earth surface receives a custom shader built from a user photograph — loaded into the shader editor, scaled to match real wall dimensions, and given a subtle bump map to catch the grazing sunlight. The timber screen pulls its material from the built‑in catalog; a single drag‑and‑drop assigns it to all four panels. Post‑processing is kept light: a gentle s‑curve in the brightness‑contrast panel and a warm shift in the colour table to unify the palette.
The render runs at 4 000 pixels wide with anti‑aliasing set to high. The resulting TIFF opens in Photoshop for a final curves adjustment and a slight vignette, but the core atmosphere was fully built inside Artlantis. The entire sequence — export, light, materials, post and render — took under forty minutes on a 2019 Intel iMac.
Settling in: assign a fast scratch folder so render buckets never halt mid-job
A few habits formed early will spare a great deal of backtracking later. First, designate a permanent scratch folder on a fast drive with plenty of headroom; Artlantis writes temporary render buckets there, and a full disk will halt a batch. Second, build a personal material catalogue from the start — drag any adjusted shader to the user section of the catalog panel and name it with its real‑world reference (for example, “slate roof — Welsh grey”) rather than leaving it as “Custom shader 23”. The built‑in collection is competent, but a curated local set grows in value with every project.
Third, test the QuickTime VR export early, even if panoramas are not part of the current brief. The settings for cube‑face resolution and compression affect file size dramatically, and finding a balance between clarity and client‑friendly attachment sizes is better done on a test scene than on a deadline. Fourth, lock down the unit scale immediately after import — Artlantis inherits the source file’s units, but checking that one metre really measures one metre in the viewport prevents lights behaving oddly. Finally, keep the post‑processing panel open during the first few renders and make small adjustments while watching a low‑resolution preview region; the sliders are responsive enough for real‑time feedback.
A different approach: Artlantis, Twinmotion and Enscape
Three renderers aimed at the architectural market, three distinct philosophies. Artlantis belongs to the still‑image tradition: its strength is precise control over a single frame, with post‑processing tools and shader editing built in. The interface expects you to place lights and adjust materials with deliberate care, and the output reflects that deliberation. It is not real‑time in the way the other two are, which makes it slower for quick turnaround but often more considered in final polish.
Twinmotion shares the same parent stable — Abvent originally developed it — but takes the opposite path. It is a real‑time engine based on Unreal, designed for rapid scene population, weather sliders and walkthrough videos produced in hours. Material editing is simpler, and the emphasis is on speed of iteration rather than pixel‑perfect control. Enscape sits between them in philosophy: a real‑time viewport that plugs directly into Revit, SketchUp or ArchiCAD, updating as the model changes. Its lighting is physically based and largely automatic, which suits designers who want a live render running alongside their CAD window.
Where Artlantis still holds ground is in the sheer control over the final frame. It does not try to keep up with a moving viewport; it asks you to stop, set the shot and work that shot until it is right. For presentation boards where a single image must carry the argument, that older‑school workflow remains surprisingly effective. For those searching for an artlantis 2021 download to run on older Intel hardware, the system requirements are forgiving, and the application makes no demand on Metal‑capable GPUs. A search for an Artlantis torrent or Artlantis Mac torrent suggests that interest persists well past the end of development, not least because the software still does exactly what it was designed to do.
