Thirteen individual meter modules ship inside version 1.0.30, each one resizable and recolourable from a single compact window. The suite reads audio from any system source or DAW insert, refreshing every visual layer in real time without taxing the host.
Master bus: LUFS and dynamics at a glance
Park the LUFS meter on the stereo out and watch short-term and integrated loudness update side by side with true-peak indicators — the reading has been spec-compliant since v0.7.0. Keep the dynamics scope open underneath to catch crest factor shifts the moment a limiter tightens.
Individual tracks: spectrum and stereo placement

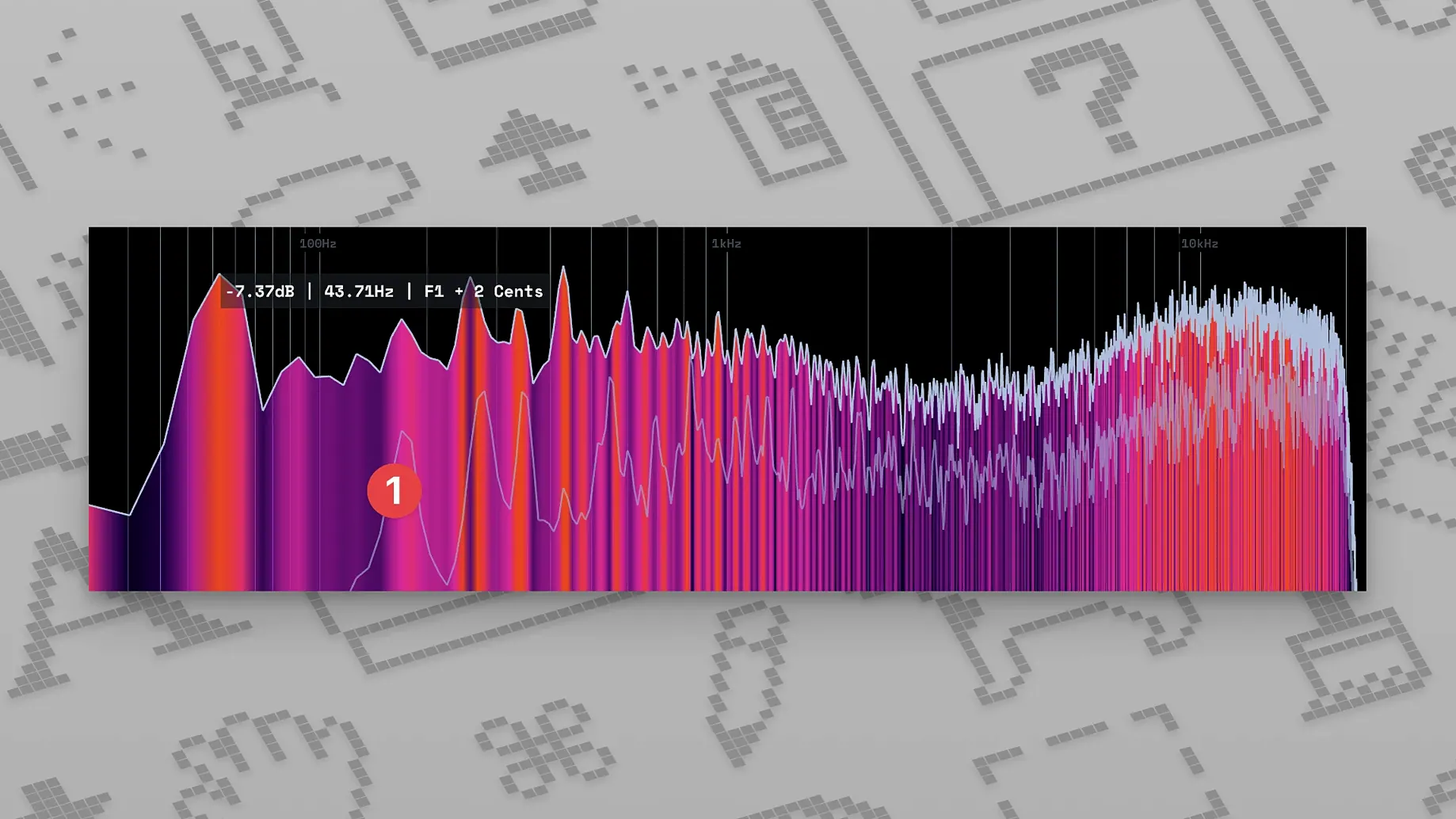

Drop the frequency display on a bass channel to isolate low-end build-up, then slide the stereo meter onto a pad to confirm width without leaving the arrange view. Both modules scale to thumbnail size, so three or four can sit above a fader strip without overlap.
Effect chains: before-and-after comparison
Insert two instances around a compressor or exciter and compare the waveform display pre- and post-processing. The colour picker lets you assign a distinct tint to each instance, making the before-after split immediately legible during playback.
Common snags: signal routing and visual lag
The most frequent stumbling block is silence in the meters despite audio playing. Almost always, this traces back to the MiniMetersServer connection. The server application runs as a separate process and must be launched before any meter module can receive a signal — the standalone app cannot read DAW audio on its own. If the server icon sits in the menu bar but the meters remain dark, check that the DAW insert is placed post-fader on a track with actual output routed to the designated server channel. A track routed directly to hardware outputs will bypass the metering chain entirely.
Visual stutter or delayed response is the second recurring complaint. The refresh rate defaults to a balanced setting that suits most M-series machines, but older Intel models sometimes struggle when multiple spectrum displays run simultaneously. Reducing the number of active modules or lowering the FFT resolution in the spectrum panel almost always restores smooth operation. Also worth noting: running MiniMeters on a secondary display connected through a low-bandwidth USB-C hub can introduce frame drops that have nothing to do with the CPU — moving the window to the primary display confirms whether the bottleneck is graphical bandwidth or processing power.
A third, less obvious snag involves the installer itself. Some users report that macOS Gatekeeper blocks the .pkg file with a generic security warning. Holding Control while clicking the package and selecting Open from the contextual menu overrides this, and the installation proceeds normally from there. The developer’s disk image contains only the .pkg and a brief readme, so there is no secondary component to locate.
Headphone mixers: stereo placement without a treated room
The application suits a narrower audience than general-purpose audio utilities, and the users who extract the most value tend to fall into one of three groups.
Mixing engineers working on headphones. Without a calibrated room, stereo placement and low-end balance become guesswork. The stereo meter’s correlation display and the spectrum module’s low-frequency resolution provide a visual safety net that catches hard-panned phase issues and sub-bass masking that headphones mask. Several engineers I know keep the LUFS meter pinned to the corner of the screen during headphone sessions as a loudness anchor, since headphone fatigue can skew perceived level within twenty minutes.
Mastering assistants building reference libraries. The ability to feed system audio through the standalone version means any reference track — streamed, played from Finder, or pulled from a media player — can be metered through the same modules as the project file. Switching between DAW and system sources takes one click on the server selector, making A/B loudness and spectral comparison genuinely fast rather than a multi-step import process.
Educators and students analysing commercial mixes. Seeing the waveform envelope and frequency distribution of a finished track while discussing arrangement density or dynamic range turns abstract concepts into visible shapes. The resizable interface works well projected on a classroom screen, and the muted colour palette avoids the eye fatigue that brighter analysers can cause over a two-hour session.
Beginner mistakes: three habits to avoid
New users often treat every module as equally important and enable all thirteen at once. The result is a cluttered window where no single reading holds attention long enough to inform a decision. The application works best with two or three modules active — a loudness meter for overall level, a spectrum for tonal balance, and perhaps a stereo meter on the master bus. Everything else can be called up only when a specific question needs answering.
Another common misstep is misreading the LUFS meter’s short-term value as an integrated loudness figure. Short-term LUFS reacts to momentary dynamics; a quiet verse followed by a loud chorus will swing the reading dramatically. Relying on it for mastering decisions without also monitoring the integrated value leads to over-compression. Let the integrated reading accumulate over the full track length before drawing conclusions.
The third mistake involves the waveform display. Beginners sometimes expect it to behave like an oscilloscope and scroll in real time. It shows a static snapshot of a short audio segment, refreshed periodically. Adjusting the window length setting in the module controls how much audio each snapshot captures, and setting it too wide obscures transient detail. A narrower window reveals the attack shape of drums and plosives more clearly.
Colour editor first: build a visual hierarchy before any readings appear
Open the module picker and immediately enable the colour editor. The default palette is restrained, but assigning a muted amber to the LUFS meter and a cool blue to the spectrum creates an instinctive visual hierarchy before any readings appear on screen. The colour choices persist across sessions, so this is a one-time setup.
Next, adjust the global window opacity. The default full-opacity setting makes MiniMeters feel like a separate application floating over the DAW. Dropping it to around 85% keeps the meters legible while allowing timeline and mixer elements to ghost through underneath — a small change that reduces window management friction during long sessions.
For the LUFS module specifically, toggle the true-peak indicator on if it is not active by default. The spec-compliant implementation added in v0.7.0 means the reading follows ITU-R BS.1770 properly, and true-peak overshoots are the most common cause of downstream encoding distortion. The meter will flag them with a clear visual cue.
If you work primarily in a DAW, set MiniMetersServer to launch at login. The server consumes negligible resources when idle, and removing the manual launch step eliminates the most common reason for a session starting with blank meters.
Software neighbours: DAWs, system audio, and the clipboard

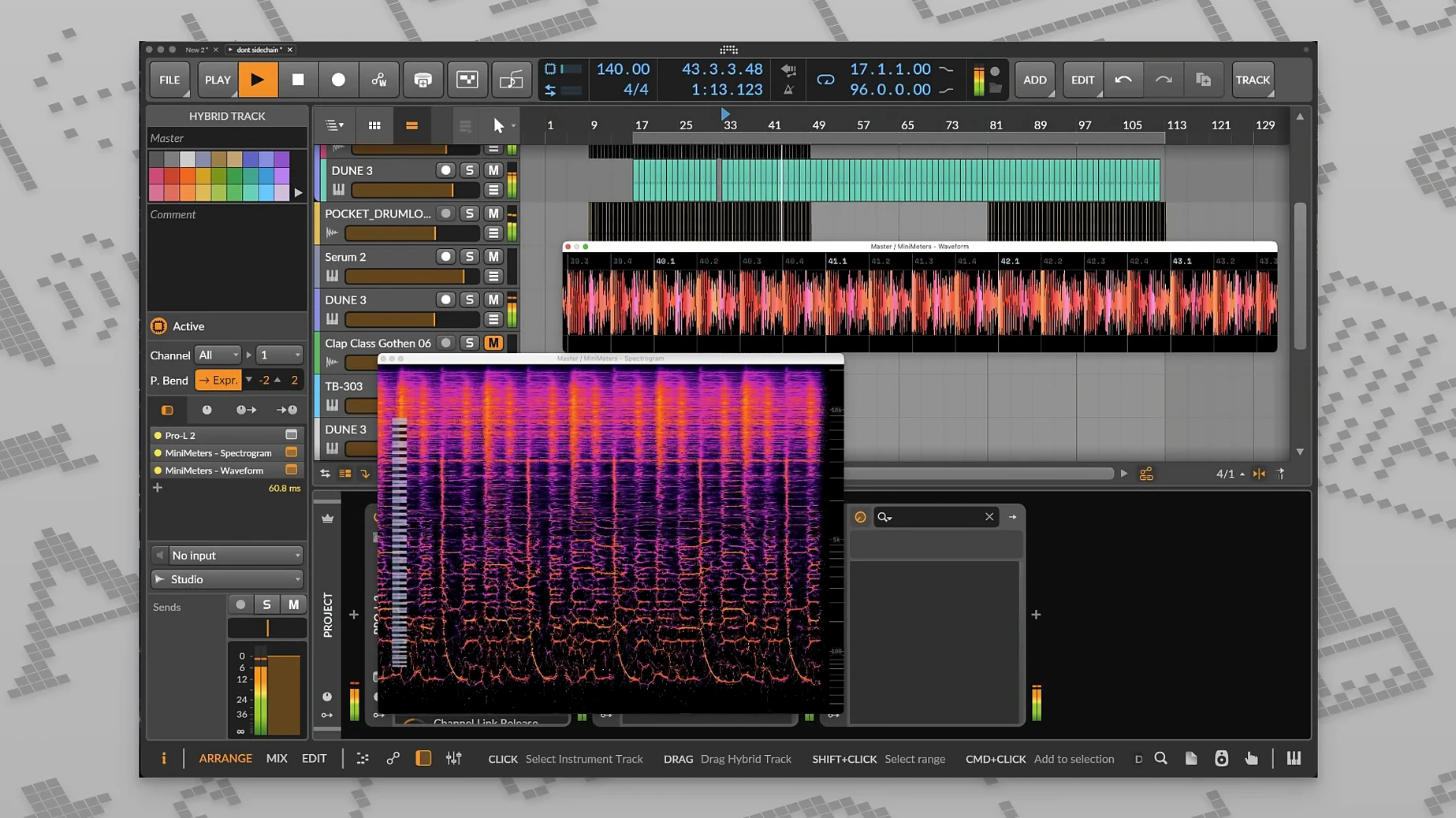

MiniMeters does not attempt to replace the metering built into a DAW — it complements it by staying visible when the DAW’s own analysers are hidden behind other windows. In Logic Pro, many engineers keep the MiniMeters window floating on a secondary display while the Logic mixer occupies the main screen, giving them continuous loudness and spectrum feedback without toggling between windows. The same pattern works in Ableton Live, where the session and arrangement views both obscure the native spectrum device.
The standalone mode’s system audio capture is the feature that bridges the gap between music software and the rest of macOS. Any audio playing on the machine — a streaming service, a video editor’s playback, a browser-based synth — routes through the same meter suite with no reconfiguration. This turns MiniMeters into a universal monitoring layer rather than a plug-in that only works inside a DAW session. Screen recording tools and streaming software benefit indirectly: checking loudness compliance for a video export is as simple as playing the file and watching the LUFS meter.
There is no official integration with Shortcuts or Automator, but the server’s menu bar presence means it can be launched via a simple AppleScript or shell command placed in a custom workflow. A few users on production forums have shared scripts that start MiniMetersServer alongside their DAW of choice, triggered by a single Alfred or Raycast keyword.
