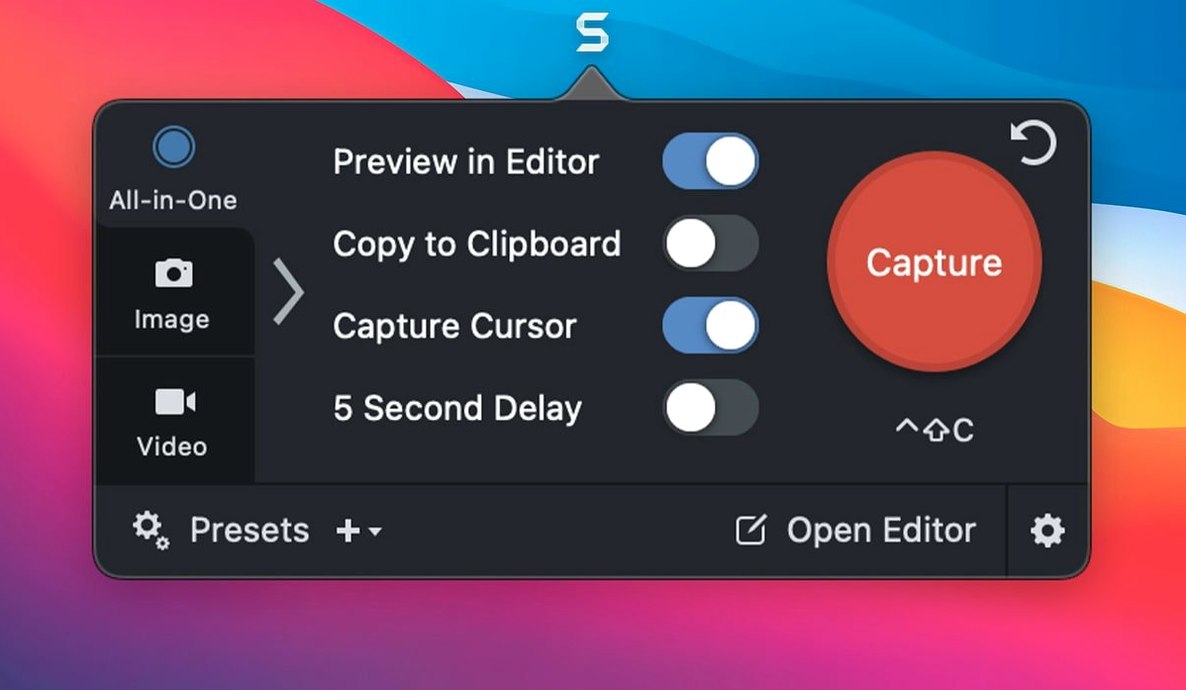

Five custom capture presets. That is the number you can save and summon with a keystroke, each one a precise configuration of region, cursor capture, and output destination. When a project demands identical framing across dozens of shots, a preset removes the tiny deviations that erode polish.
Combine images: the collage tool
Select a handful of captures in the library and Snagit arranges them into a single composition. You decide the layout grid and the background colour; the app handles alignment and spacing.
Direct the eye: shadow, highlight and dim
Apply a vignette-like dim to the surrounding interface while a highlight lifts the one menu or button that matters. Combined with a soft shadow on the callout area, the result reads like a diagram rather than a raw screenshot.
Refine the silhouette: rounded corners and cutouts
Rounded corner radii are adjustable per image, and the cut-out tool removes a rectangular or freehand region cleanly. A browser window can lose its toolbar or gain softer edges without leaving the application.
Common snags: capture not firing, floating controls stuck, and missing scroll
Capture presets sometimes refuse their shortcut. The keyboard trigger works only when Snagit is running in the background—if you quit the menu bar helper, nothing happens. Restart the app and wait for the small S icon to settle in the top right before trying again.

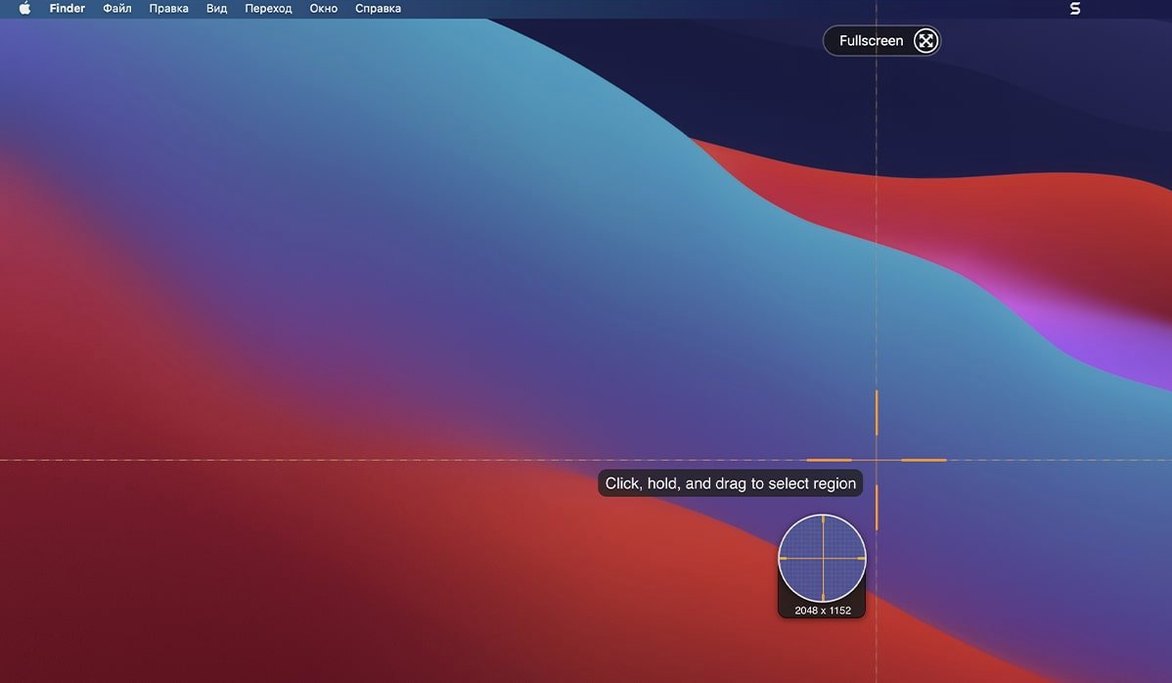

On multi-display setups, the crosshair occasionally lands on the wrong screen. Dragging it across the boundary while holding Control locks the selection to a single display; the region outline changes colour when it is constrained. If the scrolling capture fails to detect a web page, switch the browser window out of full-screen mode. Snagit reads the scrollable area more reliably when the window is floating.
The library uses tags for organisation, but searching by source application only works if captures arrive with that metadata intact. A capture from a third-party browser window inherits the filename, not the app name, unless you assign a tag manually in the editor before saving.
Launch delay: three seconds on Apple Silicon, longer with big libraries
Launch time sits around three seconds on Apple Silicon, a touch longer on Intel machines with larger libraries—the catalogue indexes creation dates and tags on startup. Once running, capture is instantaneous: press the shortcut, the screen freezes for the selection, and the preview window appears before you lift your finger.
Memory use hovers near 220 MB during an editing session with four or five open captures. That figure climbs toward 400 MB when recording a 1440p screen video with system audio, then drops back within thirty seconds of stopping. The background helper consumes under 50 MB and shows no measurable CPU activity when idle. On a MacBook Air without active cooling, a ten-minute recording session warms the chassis noticeably but never triggers throttling in my day-to-day documentation work.
Video exports benefit from hardware encoding on the M-series chips. A five-minute 1080p recording encodes to H.264 in roughly the time it takes to play it through. The editor handles large annotated stills—a full 5K Retina screenshot with eight callouts, a shadow layer, and two highlights—without redraw lag. Stability has been uneventful across the last three point releases; the 2026.3.3 fixes addressed edge cases on the newest macOS version and nothing crashed in normal use before them.
A working session: documentation for a feature update
A product manager asks for five screenshots showing a redesigned export panel. I open Snagit and switch to the preset I named Panel crop, which selects a window region at 1440-pixel width, captures the cursor, and sends the result straight to the editor. One keystroke, one click on the target window, and the first image lands in the tray. I repeat this four more times across different states of the dialog—default state, dropdown open, confirmation message visible, error state, and the final success toast.
Back in the editor I work through the captures in sequence. On the default-state image I place two arrow callouts pointing to changed labels, then apply a subtle highlight to the new dropdown and dim the rest of the panel to 40%. The dropdown-open capture needs only a single arrow and a rounded-corner crop that removes a distracting sidebar. For the error state I add a red-tinted highlight and a text callout explaining the validation rule. Each image gets a tag: export-panel, v4.2, documentation.
I select all five captures and open the collage tool. A two-row grid with light grey spacing separates the states into a logical reading order. The combined image works as a quick-reference strip for the release notes; the individual annotated files go into the knowledge base. From capture to finished set, the session runs under twelve minutes. The library search finds the whole batch later by the shared tag, even though the individual captures arrived minutes apart.
Dead video controls: clicks that did nothing until the 2026.3.3 fix
The jump to macOS 27 introduced three friction points that the 2026.3.3 update smoothed over. Video playback controls inside the Snagit editor had stopped responding to clicks in certain preview modes—pressing play did nothing, and the scrubber thumb refused to drag. That is now resolved, so reviewing a recording before export no longer requires opening the file in a separate player.
QuickLook in the Snagit library had lost its arrow-key navigation. You could preview one capture with the spacebar, but tapping the right arrow to move through a sequence did nothing; you had to close the preview, click the next thumbnail, and preview again. Arrow-key browsing now works as expected, which matters when scanning a dozen near-identical screenshots for the sharpest frame.
The third fix addressed a stubborn toolbar behaviour. On macOS 27 the capture toolbar and its associated controls—the crosshair options panel, the recording countdown overlay—refused to be repositioned. They snapped to default locations and ignored dragging. With them unlocked again, you can keep the toolbar on a secondary display or tuck the recording overlay into a corner that never obscures the subject area.
