Researchers, lab scientists and graduate students tend to keep a small set of trusted tools on their Mac: a reference manager, a text editor for protocols, perhaps a spreadsheet. GraphPad Prism sits naturally beside those, a single application for biostatistics, nonlinear regression and scientific graphing that avoids the friction of switching between separate programs.
Analysis: choosing tests and interpreting results
The software includes tools for selecting the appropriate statistical test and for understanding what the output means—features that sit comfortably next to a researcher’s own notebooks and literature. Version 11.1.0 keeps the familiar analysis functions while refining the interface and workflow, so it reads less like a separate technical island and more like a natural extension of the desktop.
Graphing: new types from multiple variables tables

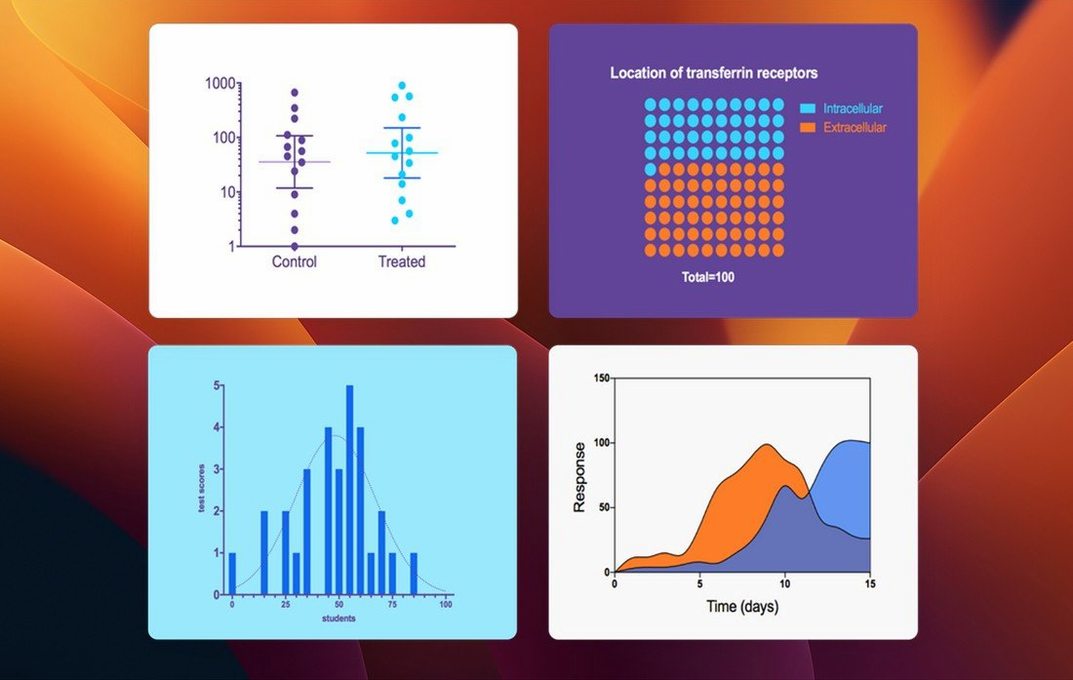

The current release adds new graph types for multiple variables tables, including bars, box-and-whisker plots and violin plots. When your data already lives in a structured table, reaching for these visualisations feels less like starting over and more like a logical next step after the analysis stage. Categorical level ordering and streamlined variable selection in the analysis dialogs reinforce that sense of continuity.
Project workflow: building a grouped table from plate-reader CSV

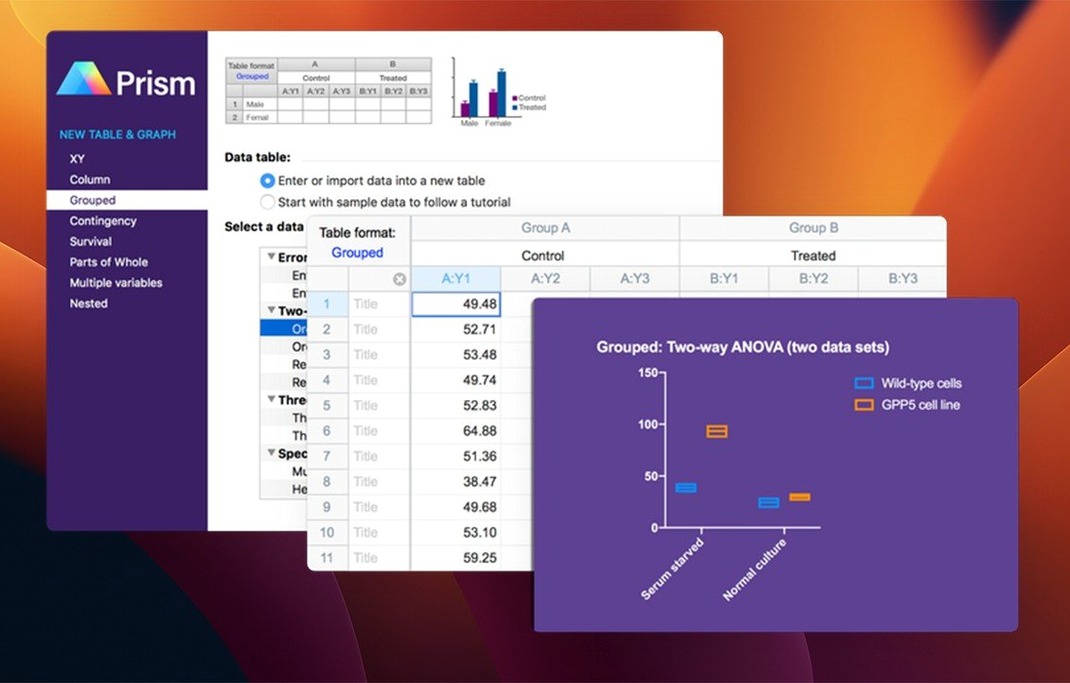

Picture a late morning in a pharmacology lab. A researcher has just exported a CSV from a plate reader and opened it in Prism. The first thing she does is create a new Grouped table, because her experiment contains two factors: drug treatment and concentration. She pastes the raw absorbance values directly into the data sheet. No reformatting in Excel first—Prism accepts pasted tab-delimited text and maps it to the table layout without complaint.

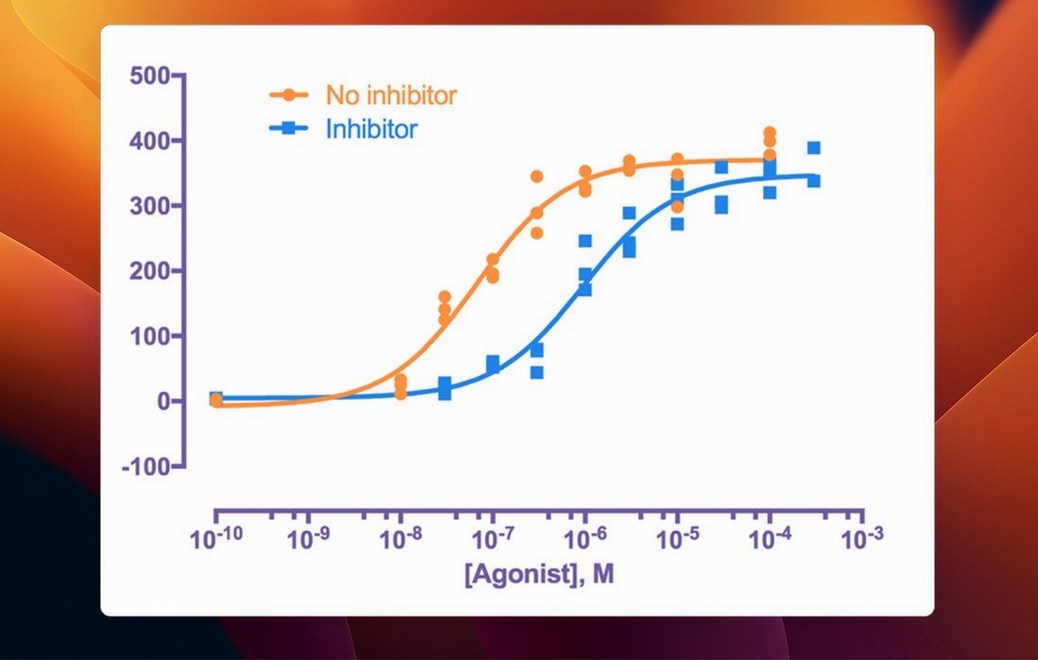

She switches to the Graph tab. A scatter plot with bars appears automatically, a default choice the software makes based on the table structure, but she wants a dose-response curve. From the Change menu she picks a nonlinear regression analysis, selects the log(agonist) vs. response model, and checks the box for an automatic graph of the fitted curve. The analysis runs in under a second; the fitted parameters appear in a separate results sheet, and the curve overlays the raw points on the graph. She spends the next ten minutes adjusting axis labels and point colours, then exports the graph as a PDF at publication resolution through the Export dialog—no intermediate screenshot step required.
Invisible habits: dragging results sheets between project files
Several touches in Prism become invisible after a week of use, because they simply match what you expect the Mac to do. You can drag a results sheet from one project file into another and the analysis travels with it. The Magic feature turns repeated operations—applying the same analysis to multiple data sets, formatting a batch of graphs identically—into a one-click action, comparable to a recorded macro but without the scripting. If you hold the Option key while clicking a graph axis, the axis dialog opens directly to that axis’s settings, saving two clicks every time.
Other small points worth knowing:
- The Hook tool, hidden in the analysis list, lets you compare the fits of two nested models with a single extra click after running a regression.
- Double-clicking a data point on a graph opens the source data table and scrolls to that row—handy when an outlier needs checking against lab notes.
- Prism remembers the last export format per project, so a series of TIFF exports for a poster session doesn’t require re-selecting the format each time.
- The Info panel on the right edge of the window displays analysis notes and constants for whichever results sheet is active, and you can type your own annotations directly into it.
- You can assign a custom colour palette to a project, and every graph created within it will draw from that palette, keeping a multi-figure paper visually coherent with almost no effort.
Resource footprint: 180 MB at idle with a moderate project
On an Apple Silicon Mac, Prism launches in roughly two seconds. Once open, it idles at around 180 MB of memory with a moderate project loaded—a project containing eight data tables, a dozen analyses, and twenty graphs. Running a batch of nonlinear regressions across six data sets pushes CPU usage briefly to a single core, then it drops back. The interface does not stutter when switching between sheets, and the scrolling through a results table with several thousand rows stays smooth. On an older Intel machine, the same operations feel a beat slower but remain responsive; the main difference is that very large survival analysis runs can take a few seconds longer.
Stability in version 11.1.0 reflects the more than sixty bug fixes it bundles. Crashes during graph export, once a known annoyance in earlier releases, no longer appear in daily use. The app handles interrupted file saves gracefully: if you close a project while a large analysis is still running, it warns you and waits for completion, rather than corrupting the file. For labs that run Prism alongside instrument software and image-analysis tools, the modest memory footprint means it rarely competes for resources.
Alongside other Mac apps: three comparisons
Placed next to R and RStudio, Prism occupies a different niche. R gives you unlimited statistical methods and ggplot2’s fine-grained control over every graphical element, but it demands scripting for even simple tasks. Prism’s advantage is speed to a publication-ready figure when the analysis is standard: a two-way ANOVA with post-hoc tests and a formatted graph takes seconds, not the minutes required to write and debug a script. The trade-off is that Prism cannot match R’s breadth of custom methods.
Compared with JMP, Prism feels simpler in scope. JMP excels at exploratory data analysis with large, messy data tables and interactive linked graphs. Prism, by contrast, expects you to know your experimental design before you start; its tables are structured for that purpose. The benefit is that the analysis dialogs speak the language of experimental biology—repeated measures, dose-response, survival—without the layers of general-purpose statistical terminology that JMP presents.
Against OriginPro, the comparison is tighter. OriginPro offers more graph customisation and a wider set of analysis tools, especially for engineering and physics. Prism’s graphs, however, reach a clean, minimal look with less manual tweaking. For a cell biologist preparing a figure for a journal with strict formatting guidelines, Prism’s defaults are closer to the finished product than OriginPro’s. OriginPro also carries a heavier interface, while Prism’s single-window design keeps the workspace uncluttered.
Finder integration: Quick Look thumbnails for .pzfx files
Prism integrates with macOS in quiet but practical ways. It supports Quick Look for project files in the Finder: pressing the spacebar on a .pzfx file shows a thumbnail of its graphs, which helps when searching through old experiments by sight rather than filename. The Services menu works for selected text, so you can highlight a results summary and send it directly to Notes or to a Mail message. AppleScript is not officially documented, but Prism responds to basic open commands, and some labs build Automator workflows that batch-export graphs from a folder of project files overnight.
In practice, Prism often sits between a spreadsheet application and a vector graphics editor. Raw data arrives from Numbers or Excel or directly from a lab instrument; after analysis and graphing, the final figure may travel to Affinity Designer or Illustrator for fine layout adjustments before submission. Prism’s PDF and SVG exports make that final step straightforward, preserving text as editable vector objects. It also reads and writes CSV without fuss, so data can loop back into a statistics package if a collaborator prefers a different toolset. The app does not try to replace every step in the chain—it handles the middle section where statistics and graphing meet, and it does that without drawing attention to itself.
