Vector Magic for Mac

Compatibility: still on Intel Macs

Vector Magic Desktop Edition runs on Intel-based Macs from OS X 10.7 forward. The application handles files up to 10 megapixels and 10 MB in size, so it suits most bitmap sources without strain.

Conversion: input and output formats

Drop in a JPEG, GIF, PNG, BMP, TIFF or PSD and the software traces it to a clean vector result. Export choices cover EPS, SVG, PDF, AI, DXF, EMF and PNG, with transparency preserved where the source image calls for it.

Refinement: tidy up before or after

Built-in background removal and copy-paste support make it simple to isolate a subject and place the vector straight into a layout document. All processing happens offline, and the help system is built directly into the app.

Settings: a few changes before the first real job

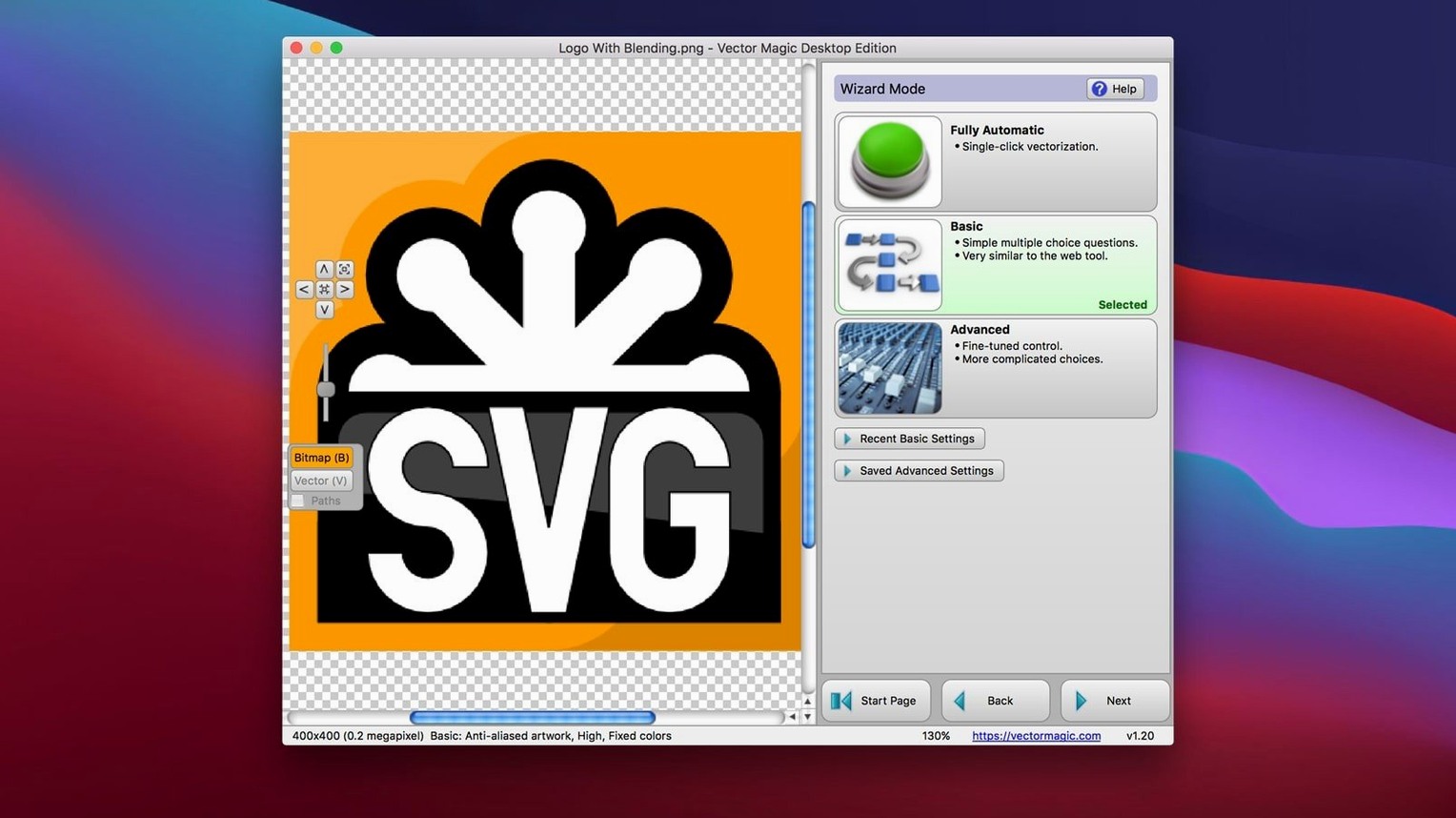

Out of the box, Vector Magic chooses Automatic mode. That works for a quick sense of what the software can do, but switching to Basic or Advanced early on gives you far more control over the tracing engine. In Advanced mode, tick the checkbox labelled Show advanced parameters — it reveals sliders for detail level, colour count, and noise filtering that are hidden by default. The noise filter deserves particular attention: set too high, it erases fine detail; set too low, it turns JPEG artefacts into unwanted vector shapes. A value between 2 and 5 suits most scans and phone photos.

Another setting worth changing immediately is the palette mode. The default palette often adds more colours than a logo designer wants. Switch it to Limited colours and set the count to match the actual number of inks in the artwork. For a two-colour logo, forcing exactly two colours prevents the tracer from inventing intermediate shades along anti-aliased edges. The difference in output cleanliness is stark. Lastly, if you work with designs destined for print, set the output colour space to CMYK in the export options — Vector Magic respects the setting when writing EPS and PDF files.

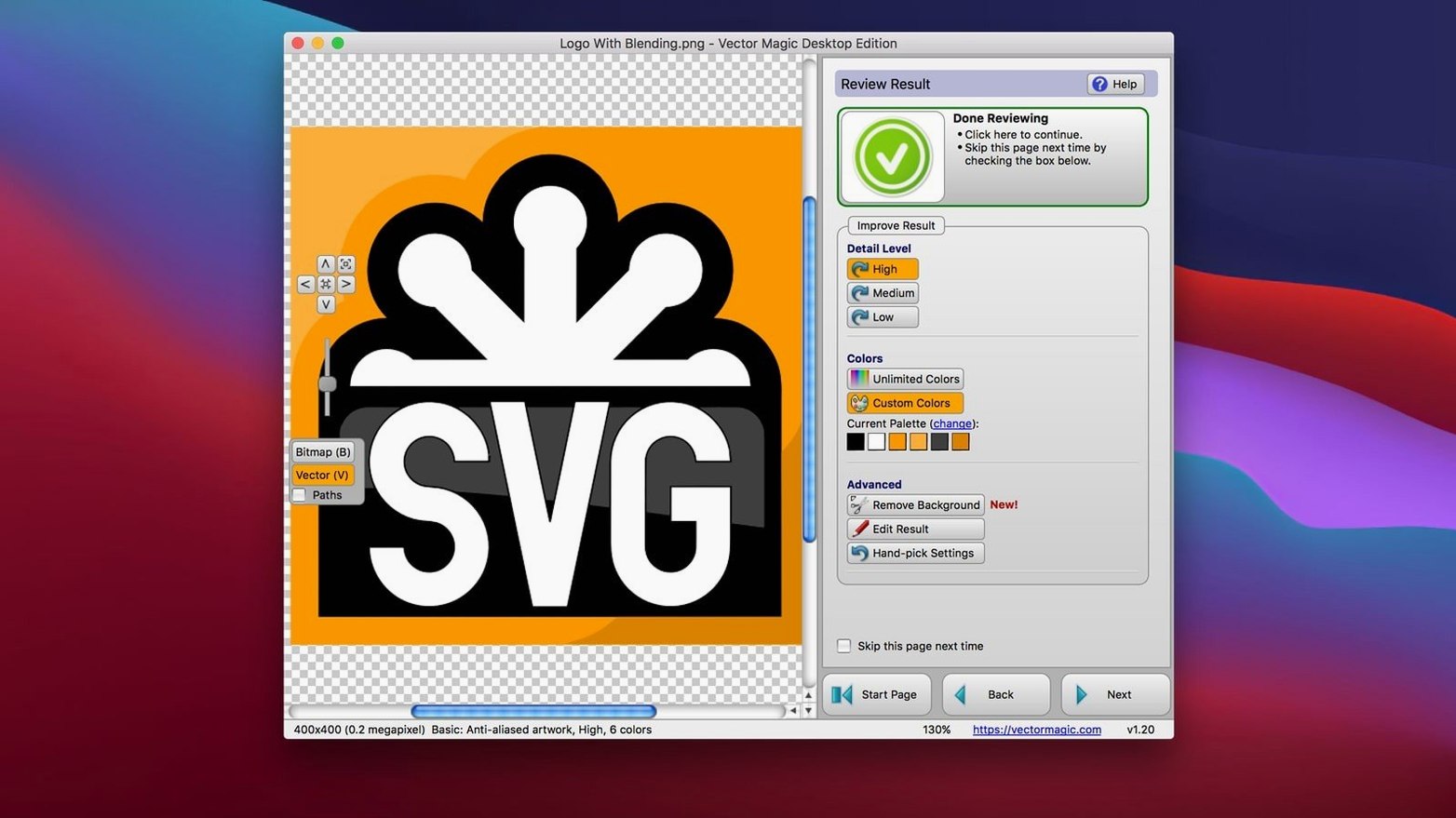

Edit Result button: the habit that catches missed shapes

The interface is quiet and single-window, so it is easy to overlook the segment editing panel. In the first few days, make a point of using it after every automatic trace, even on simple images. Click the Edit Result button and hover over any shape: the software highlights the segment it detected. If two shapes that ought to be separate have merged, a single click on the boundary line splits them. This habit, repeated for a week, trains your eye to spot the common failure patterns — typically around thin strokes and closely spaced colours — and cuts the number of trips back to the source file.

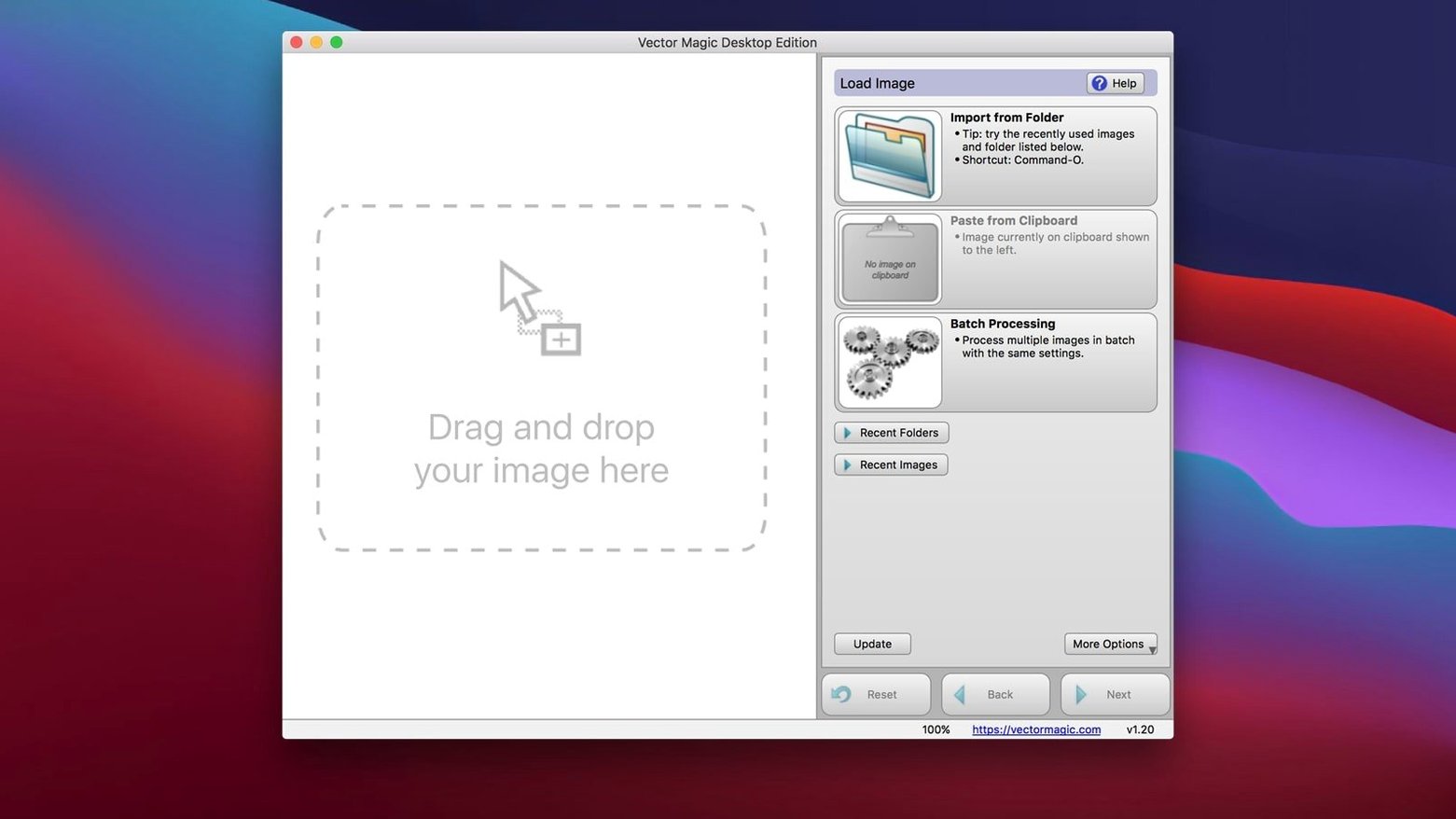

Drag-and-drop behaviour is another thing to internalise early. You can drop a raster file onto the dock icon, onto the window, or onto the app icon in the Finder toolbar. Each method works identically. More useful is the reverse direction: once a vector result appears, drag the preview thumbnail directly into an open Illustrator or Sketch document. The transfer happens as a fully editable vector group, not as a flattened image. No export dialogue, no intermediate file. On a Mac with Retina display, the preview itself is sharp enough to judge curves and corner fidelity before committing the vector anywhere.

One quiet feature that rewards early exploration is the super-resolution toggle in the Advanced panel. When converting a small source image — say, a 300-pixel-wide logo pulled from a website — enabling it lets the tracer infer edge detail beyond the pixel grid. The result is not true resolution, but the curves it produces are measurably smoother than a straight trace. Use it sparingly; on photographs, it can hallucinate shapes that were never there.

From client PNG to clean vector: one drag-and-drop session

You arrive at the studio with a client email containing a PNG of their old wordmark, scanned from a twenty-year-old letterhead at 150 dpi. The file sits on the desktop. You drag it onto Vector Magic and the app opens it in the preview pane, zoomed to fit. The automatic trace resolves in under three seconds. The result is decent — the letterforms are intact — but a pale grey shadow behind the type has been interpreted as a separate solid shape. You switch to Advanced mode, increase the noise filter to 8, and watch the shadow disappear from the live preview in real time. The type remains crisp.

Next, you click Edit Result. The capital 'R' has a small artefact where the scanner picked up a fold in the paper. You click the shape, delete it, and the gap closes automatically because the surrounding curve is continuous. Satisfied, you open the export panel, choose EPS with CMYK output, and drag the finished vector straight into an email reply. The whole session, from download to delivery, lasts under four minutes. The software asks nothing of you that the image did not already contain.

Single-purpose pipeline: why it leaves layout to Illustrator

Vector Magic does one conversion job and leaves layout, typography and colour grading to other applications. This narrowness is its strength. On a Mac, it fits naturally into a pipeline where the raster source comes from Photoshop or a scanner utility, the vector result lands in Illustrator or Affinity Designer, and the final layout lives in InDesign. Because the app supports copy-paste of vector data — not just files — you can skip the Finder entirely. Copy a traced result, switch to Illustrator, paste, and the shapes appear as editable Bézier paths with the colour fills intact.

macOS features integrate without fanfare. The app respects the system colour profile and uses Core Graphics for its preview rendering, so what you see on screen matches what prints. Quick Look works on exported SVGs and PDFs: tap the spacebar in the Finder to check a result without opening any application. The built-in help system is a standard Apple Help book, searchable from the Help menu and written in clear, example-led prose. For batch work, selecting multiple files in the Finder and dropping them onto the Vector Magic dock icon opens them in sequence; the app processes each one with the last-used settings, which pairs well with a folder of identically-lit product photos that all need the same tracing parameters.

One small but telling detail: if you use a clipboard manager such as Pastebot or Copy 'Em, the vector data Vector Magic places on the pasteboard survives a clipboard history search. You can trace an image on Monday and paste the vector into a document on Wednesday without re-exporting. Few graphics utilities on the Mac are that quietly well-behaved.

A complete workflow: tracing a two-colour badge for screen printing

The task is to take a client-supplied photo of an embroidered badge and produce a clean two-colour vector ready for screen separation. The source is a JPEG shot on a phone under office lighting: slightly skewed, with a visible fabric texture and uneven colour across the stitching.

First, open the image in Preview and crop away the desk surface, leaving only the badge and a narrow margin. Save a copy as PNG to avoid introducing further JPEG compression. Drag the PNG into Vector Magic. The automatic trace produces six colours because it reads the fabric texture as distinct shades. Switch to Advanced mode, set the palette to Limited colours and the count to 3 — one for the dark thread, one for the light thread, and one for what should become transparent. Tick Background removal and click on the fabric background in the preview; it drops away instantly. The live preview now shows the badge on a checkerboard.

Zoom to actual size and inspect the edges between the two remaining colours. Where the embroidery threads cross, the tracer has drawn a jagged boundary. Reduce the detail level slightly — from the default of 10 down to 7 — and the boundary smooths without losing the character of the stitching. The colour count stays locked at two. Click Edit Result and use the segment tool to separate a small loop in the letter 'g' that had merged with the background shape. Two clicks, and the loop is independent.

Export as SVG with the Flatten option turned off, so the two colours remain on separate layers. Open the SVG in Illustrator. The dark thread and light thread sit on their own layers, named by colour. Assign spot colours to each — Pantone 289 for the dark, Pantone 7408 for the light — and the file is ready for the screen printer. No redrawing, no manual tracing with the Pen tool. The entire badge, from phone photo to print-ready vector, took about eight minutes. Vector Magic handled the heavy tracing; Illustrator handled the colour assignment; Preview handled the initial crop. Each tool did what it was built for.

• OS X 10.7 or later
• Intel 64-bit processor
• Maximum file size: 10.0 MB
• Maximum image size: 10.0 megapixels
