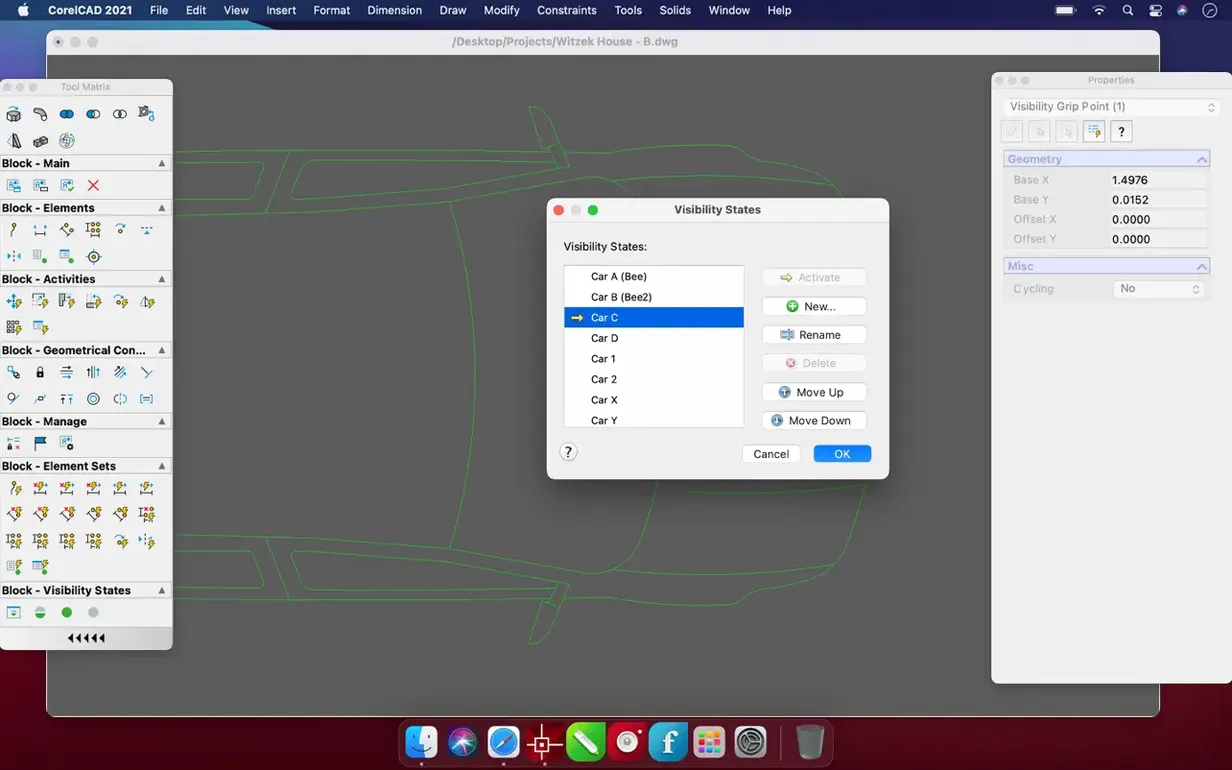

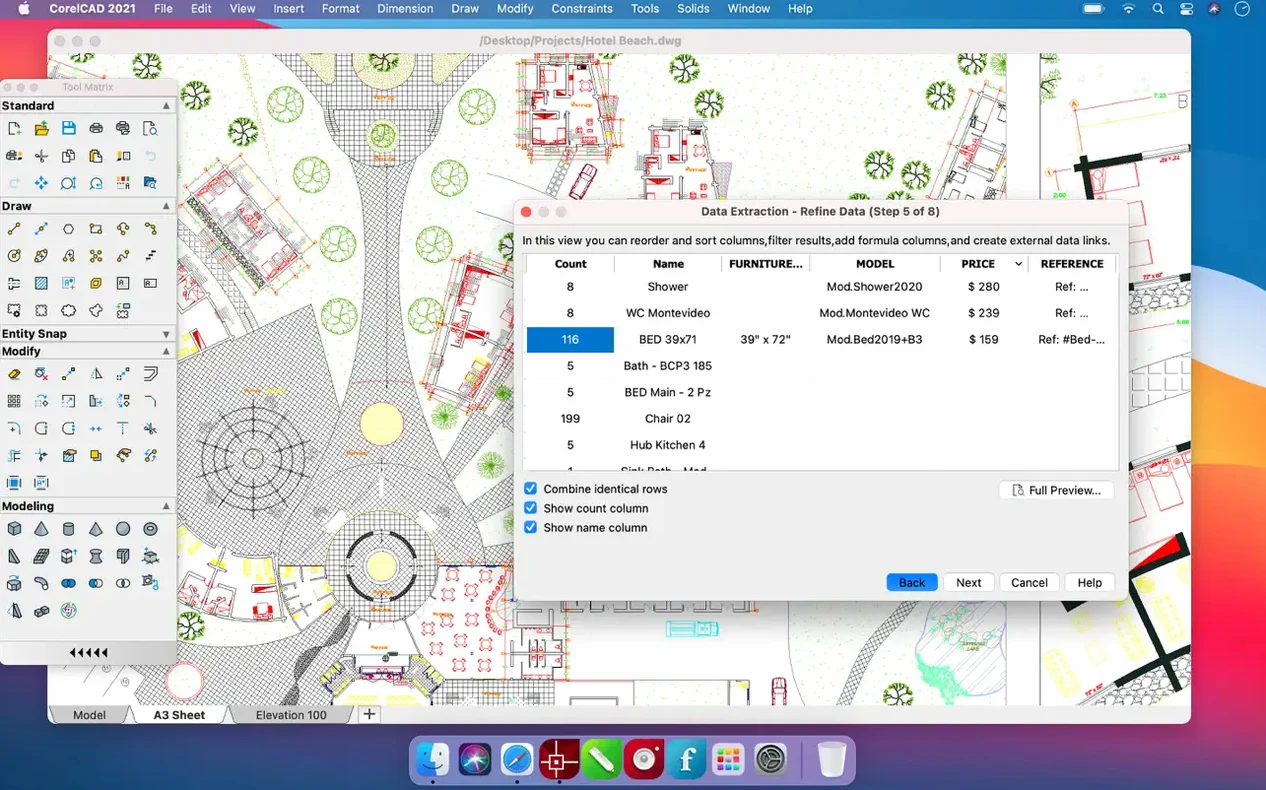

CorelCAD is a native Mac application for precise 2D drafting and 3D modelling, aimed at anyone who needs detailed technical drawings and solid geometry without leaving the Apple ecosystem.
Draw with constraints: quick precision
Open a new blank file and draw a simple rectangle; then apply a dimensional constraint to its sides. Watch how the geometry locks into exact measurements, a far cleaner way to work than nudging anchor points by hand.
Layer a technical plan: from sketch to layout
Import a rough sketch as a reference image, trace over it on one layer, then add dimensions and annotations on a second. The real satisfaction comes when you switch to a layout tab and arrange viewports at scale.
Export a solid: the STL route

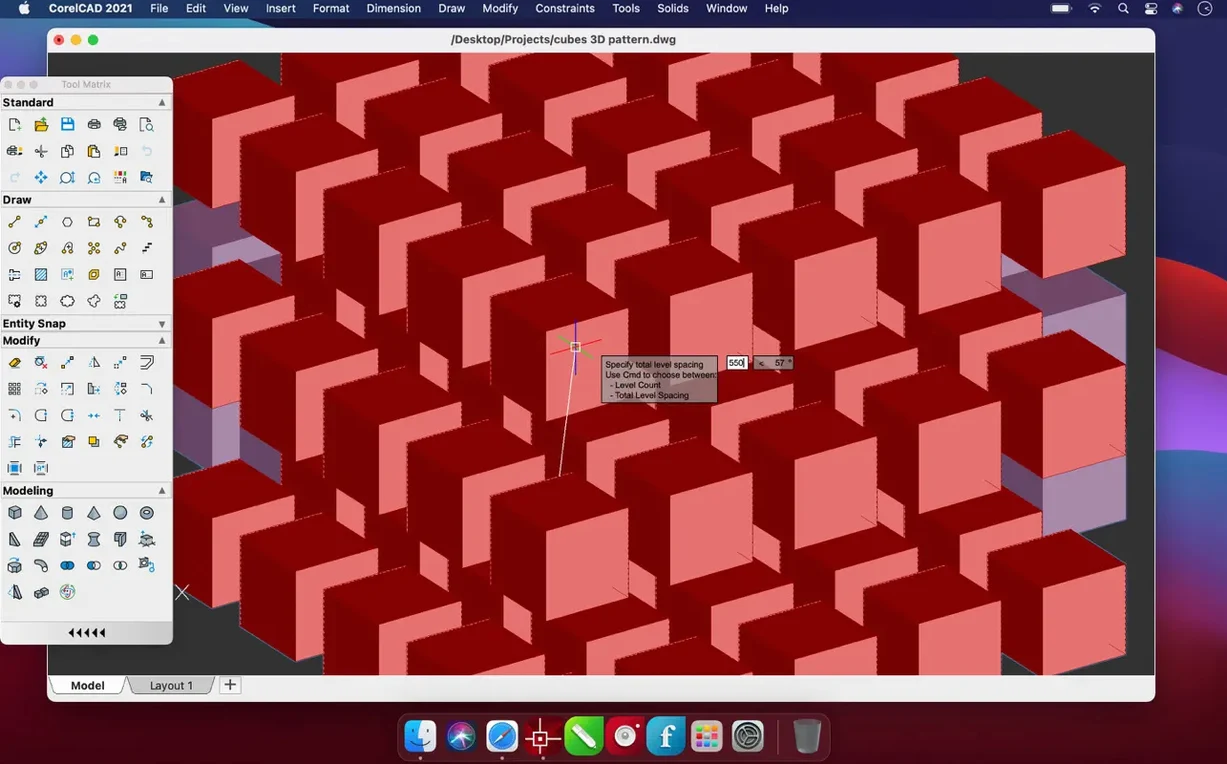

Build a simple 3D shape using extrude and boolean tools, then export it as an STL file. CorelCAD prepares the mesh cleanly enough for slicing software, and that makes it a practical step for 3D printing from a familiar drafting environment.
Freelancers who open client DWG files: a few profiles
CorelCAD sits at a particular intersection: it costs less than the industry heavyweight yet reads and writes DWG natively. That shapes its natural audience.
Freelance architects and structural engineers who receive DWG files from clients, surveyors, or contractors and need to open, inspect, and modify them without conversion headaches. The Mac-native interface means no Windows virtual machine, no remote desktop, just a direct launch from the Applications folder.
Industrial designers moving between 2D and 3D. The ability to sketch a flat elevation, extrude it into a solid, then export an STL for a prototype print keeps the entire cycle inside one piece of software. For quick concept validation, that is genuinely useful.
Students and educators in technical disciplines where DWG compatibility is a course requirement. The interface language list — fourteen options, from French to Japanese — makes it accessible in multilingual classrooms, and the ARM support means it runs well on current MacBook Air models.
Small fabrication shops handling DXF and DWG for CNC toolpaths. CorelCAD reads and writes the formats they already use, and the clean export options for PDF and SVG help when sending layouts to clients for approval.
Set your default units before drawing: first moves after install
After dragging the application to the Applications folder and launching it from Launchpad, a few deliberate steps turn a fresh install into a familiar workspace.
Open the Drawing Settings dialogue before creating your first file. Set the default units — millimetres or inches, depending on your trade — and define the grid spacing and snap increments you actually use. The defaults are reasonable, but matching them to your own standards now prevents small annoyances later.
Create a template file with your preferred layers, text styles, and dimension styles, then save it as a DWT. Set that template as the default for new drawings. On day two, when you open a fresh file and find your own layer names already in place, the five minutes spent on setup will feel like a wise investment.
Load one or two previous DWG projects and check how line types, hatches, and text render. CorelCAD’s DWG fidelity is high, but verifying it with your own files — especially those from older AutoCAD versions — gives you confidence before a deadline appears.
If you work with a team, test the DWS standards file support early. Attach a DWS to a test drawing, run the standards checker, and see how violations are flagged. This is one of those features that is easy to overlook until a drawing set goes out with inconsistent dimension styles.
Boost arc smoothness on Retina: one preference to change now
A few preferences repay immediate attention.
Display resolution for arcs and circles: under application preferences, raise the Arc and circle smoothness value from its default. On a Retina display, the difference is immediately visible — curves appear as curves, not as segmented polygons, which matters when you are zooming in on complex geometry.
Right-click behaviour: the default right-click can be set to repeat the last command or open a context-sensitive menu. If you come from another CAD environment, experiment with both. The context menu saves trips to the toolbar; repeat-last-command speeds up repetitive drafting. Choose early and build the muscle memory.
Auto-save interval and backup files: the default auto-save is on, but the interval and the backup file location are worth reviewing. Point the backup directory to a cloud-synced folder if you want off-site copies without thinking about it.
Crosshair size: extend the crosshair to full screen. A full-length crosshair makes it easier to align elements across a large drawing, especially on a 27-inch display or an external monitor.

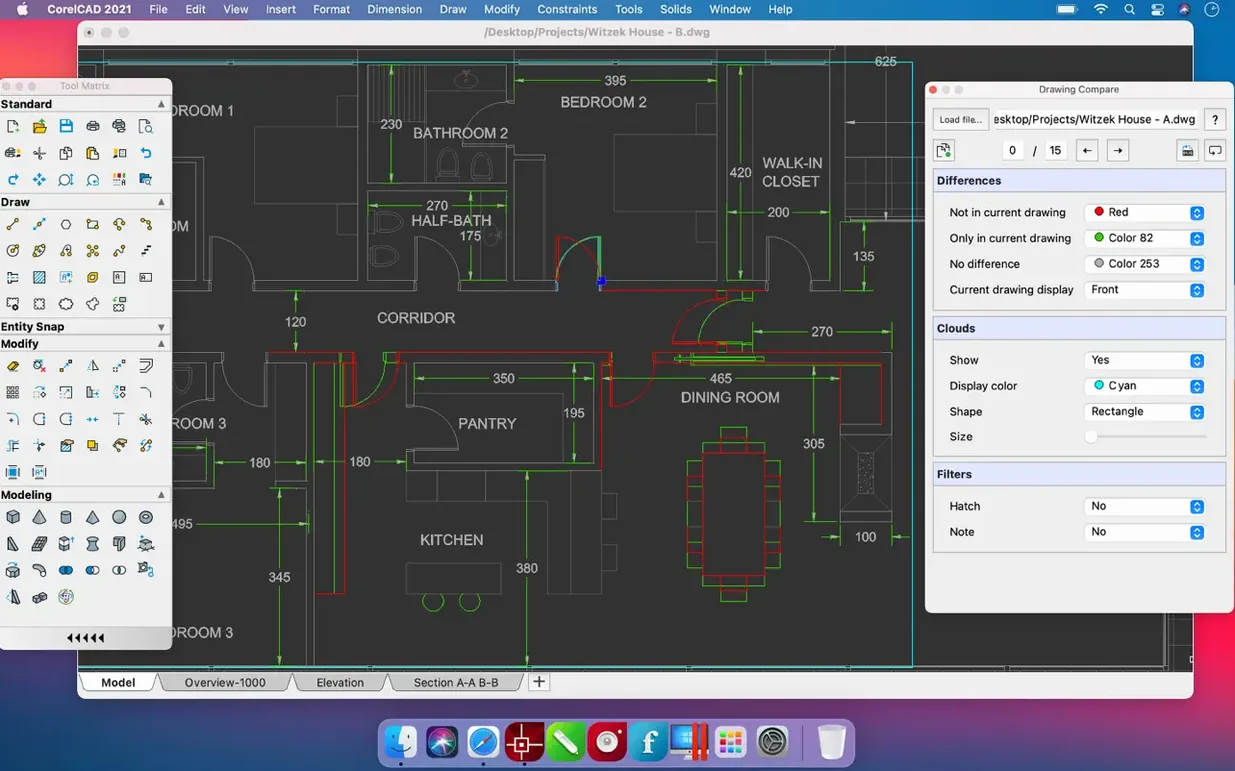

A workflow: renovation survey to dimensioned plan
Here is a start-to-finish path for a common task: turning a site survey into a dimensioned floor plan ready for a planning application.
Begin with a scanned survey sketch or a photograph of the existing floor plan. Use the Attach command to place the image as an underlay on a dedicated layer named “Underlay.” Scale the image using a known measurement — the width of a doorway is often reliable — with the Scale tool and a reference line traced over that known dimension.
Create a second layer called “Walls.” Set it as active and pick a polyline tool. Trace the external and internal wall lines, snapping to the image underlay. Use Ortho mode to keep lines square, toggling it off only for angled walls. Close each room outline as you go.
With the wall outlines complete, apply a Parallel constraint between exterior and interior wall lines to represent a consistent wall thickness. Add dimensional constraints to critical spans — overall length, room widths — so the geometry cannot drift during later edits.
Create a “Dimensions” layer and switch to a layout tab. Set the viewport scale to 1:50 or 1:100, whichever suits the sheet size. Place linear and aligned dimensions directly in the layout, not in model space. This keeps the dimension text at a consistent size regardless of drawing scale.
Add a title block layer and insert a border and title block. Fill in the project name, date, and scale. Run the Standards checker if a DWS file is attached, to catch any dimension style mismatches before export.
Finally, export to PDF from the layout tab. The result is a single-sheet plan with scaled viewports, readable dimensions, and a professional title block — produced entirely on a Mac, with no format conversions along the way.
